188256 - Scoring Saw Blades HW "F" - for hoggers

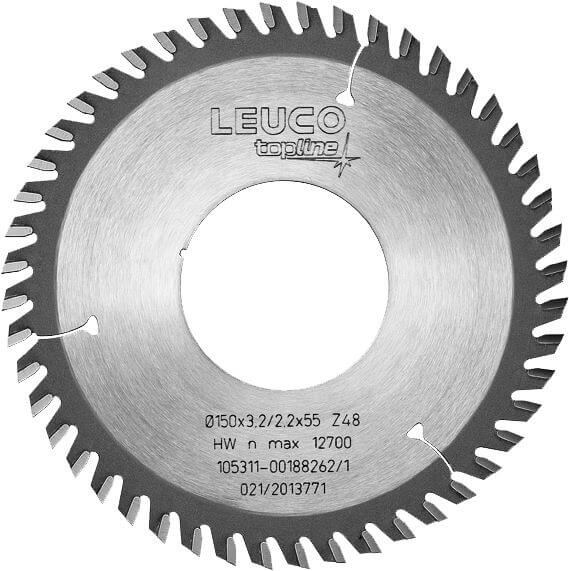

Product

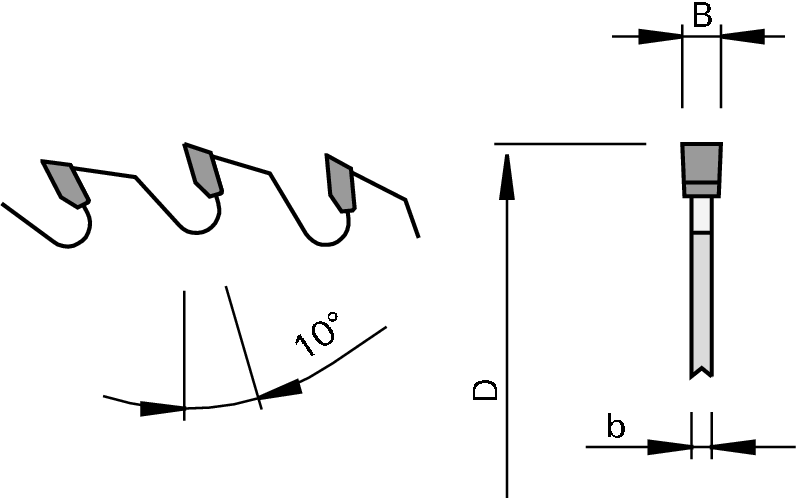

Drawing
-
-
- Tungsten Carbide [HW]
Technical data
Description
Machine / Application
- double end tenoners with scoring / hogging unit
- for chip-free scoring of raw, melamine-, paper-, HPL-laminated, foiled and veneered panels
Design
- tooth configuration: flat "F"
- cutting material: HW HL Board 06
Advantages
Notes
- application with feed
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 150 [mm] | |
| B = Cutting width | 3,2 [mm] | |
| b = Body thickness | 2.2 [mm] | |
| Ø d = Bore diameter | 40 [mm] | |
| Z = No. of teeth | 48 | |
| Hook angle = Hook angle | 10 [°] | |
| LEUCODUR = Cutting material | HL Board 06 | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
