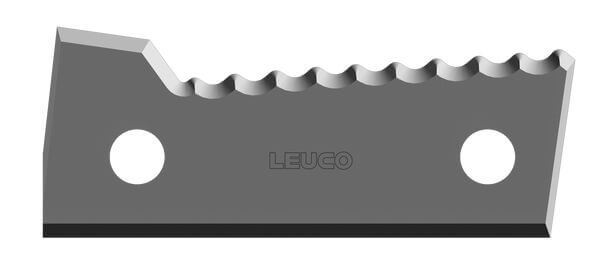

185363 - Profile Knife HW - for dove-tail profiles
Technical data
Description
Machine / Application
- for dove-tail cutterheads by Hundegger, Weinmann
- joinery machining
Design
- cutting material: HW
- HL Solid 20 for hard and soft woods
Advantages
Notes
- packing unit see table

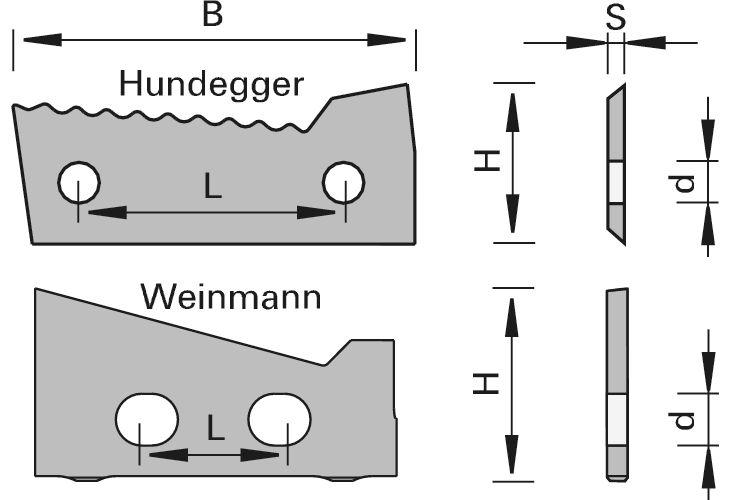

Feature | Value | |
---|---|---|
B = Width | 34,9 [mm] | |
H = Height | 18.6 [mm] | |
S = Thickness | 2 [mm] | |
Ø d = Bore diameter | 5,0 [mm] | |
L = Bore distance | 13,8 [mm] | |
Wedge∡ = Wedge angle | 55 [°] | |
LEUCODUR = Cutting material | HL Solid 20 | |
PU = Packing unit | 2 [pc.] | |
L = Delivery Status | ||
Machine/Type | Weinmann | |
Remarks | without serration | |
Dimensions entered are not listed?
available from stock |
