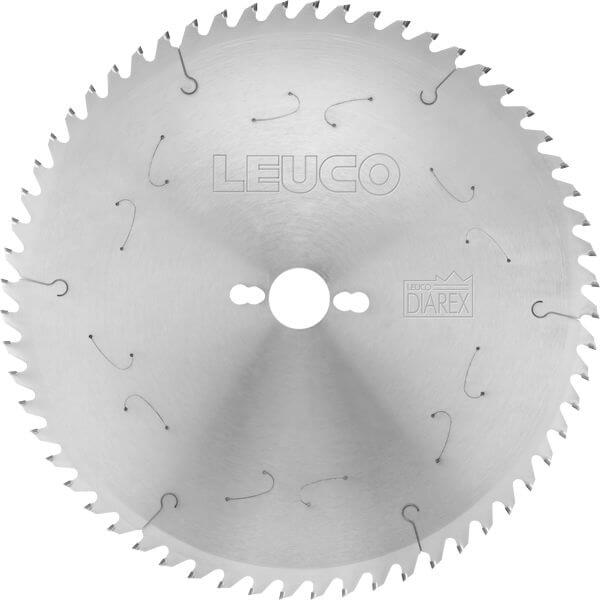

DIAREX Sizing Saw Blades DP

Product

Drawing

  • Polycrystalline diamond [DP]

Article

Description

Machine / Application

  • table saws
  • vertical panel sizing saws
  • for finish cuts in varying materials

Design

  • resharpening area 2.0 mm
  • cutting material: DP in different designs depending on the application

Advantages

  • long edge lives thanks to tooth group with higher number of quality-forming cutting edges
  • less vibration and noise thanks to laser ornaments

Notes

Table- and picture caption ...

Ø D
[mm]
B
[mm]
b
[mm]
Ø d
[mm]

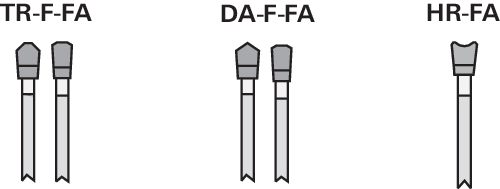

Z NL Tooth geometry Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

250 3,2 2.2 30 48 2/7/42 + 2/9/46 + 2/10/60 TR-F-FA 192955
|
303 3,2 2.2 30 48 2/7/42 + 2/9/46 + 2/9,5/46,5 + 2/10/60 TR-F-FA 80490705
|
303 3,2 2.2 30 60 2/7/42 + 2/9/46 + 2/10/60 TR-F-FA 192957
|
303 3,2 2.2 30 84 2/7/42 + 2/9/46 + 2/10/60 TR-F-FA 192960
|
350 3,2 2.2 30 60 2/7/42 + 2/9/46 + 2/10/60 TR-F-FA 192961
|
400 3,5 2.5 30 60 2/7/42 + 2/9/46 + 2/10/60 TR-F-FA 193100
|
303 3,2 2.2 30 70 2/7/42 + 2/9/46 + 2/10/60 DA-F-FA 192959
|
250 3,2 2.2 30 50 2/7/42 + 2/9/46 + 2/10/60 HR-FA 192956
|
303 3,2 2.2 30 65 2/7/42 + 2/9/46 + 2/10/60 HR-FA 192958
|
350 3,2 2.2 30 65 2/7/42 + 2/9/46 + 2/10/60 HR-FA 192962
|
