Selection via tool type

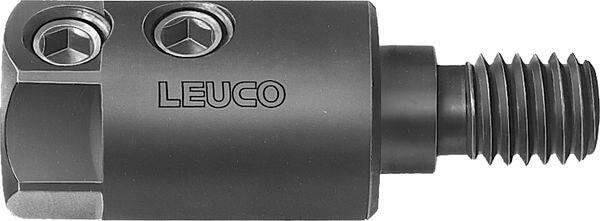

Clamping Chuck Combi Systems

Product

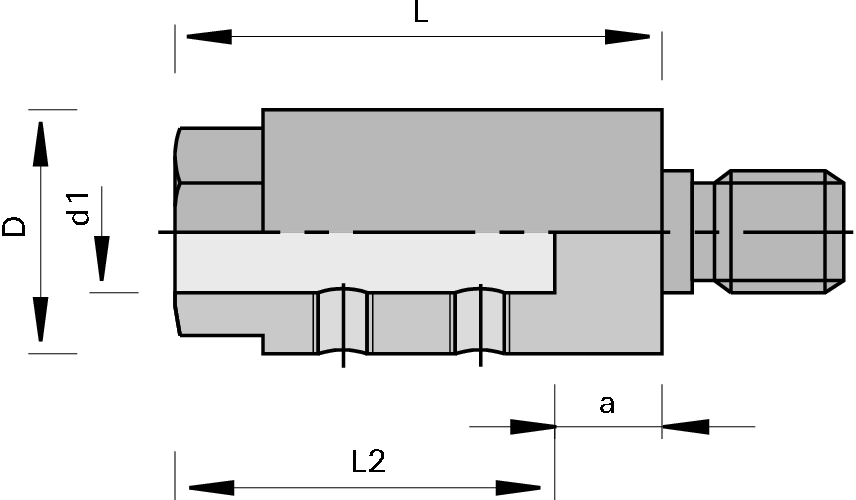

Drawing

Article

Description

Machine / Application

  • for mounting of drill bits with cylindrical shank and clamping surface

Design

  • drill bits are clamped with setscrews

Advantages

Notes

  • clamping chucks with "BSS" mark are compatible with quick-changing system for drill bits
  • for threaded shank design and appropriate machines see Technical Information

Table- and picture caption ...

Ø d1
[mm] 		L2
[mm] 		L
[mm] 		Ø D
[mm] 		a
[mm] 		Type Remarks Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

8 20 22 15 2 D 161282
|
8 20 22 15 2 D 161281
|
8 20 24.5 15 4.5 A 010683
|
8 20 24.5 15 4.5 A 010677
|
8 20 24.5 15 4.5 B 161285
|
8 20 24.5 15 4.5 B 161284
|
8 20 24.5 15 4.5 C 058412
|
8 20 24.5 15 4.5 C 058411
|
8 20 37 15 17 C 059300
|
8 20 37 15 17 C 059299
|
Show 1 to 10 of 29 entries
