CC010 Countersink DP - fixed pin
Product

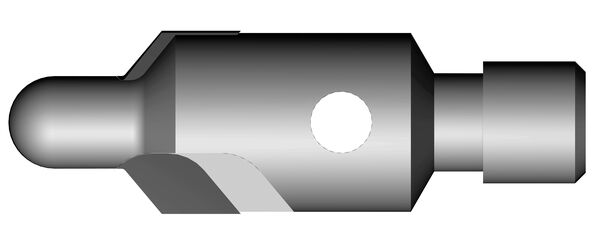

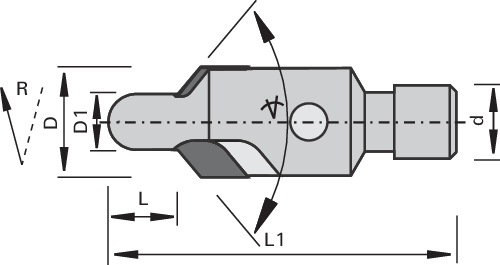

Drawing
-
- Polycrystalline diamond [DP]
- MEC
Article
Description
Machine / Application
- Counterbore with thread interface (metric / imperial) for the use in hand-held machines (MDU) with stop holder
- for subsequent countersinking of bores
- for optimal riveted joints in the aerospace sector
- suitable for all fiber reinforced plastics, aluminum and other light metals
Design
- ausgeführt mit festem Führungszapfen
- standardmäßig mit zwei oder drei Schneiden
- anwendungsspezifische Auslegung der Werkzeuge ist üblich
Advantages
- DP-tipping for long edge life and economic efficiency
- Fixed guiding pins matched to the bore diameter increase machining quality and process stability
Notes
- Customer-specific tool design
- metric or imperial dimensions are possible
|
Ø d
[inch] |
Ø D1
[inch] |
Ø d
[inch] |
L1
[inch] |
Z | L/R |
L
[inch] |
Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||||
| 0,375 | 0,159 | 0,25-28 UNF | 1,181 | 2 | R | 0,181 | 1740162 | ||
