CD010 VHW high-performance drill bit

Product

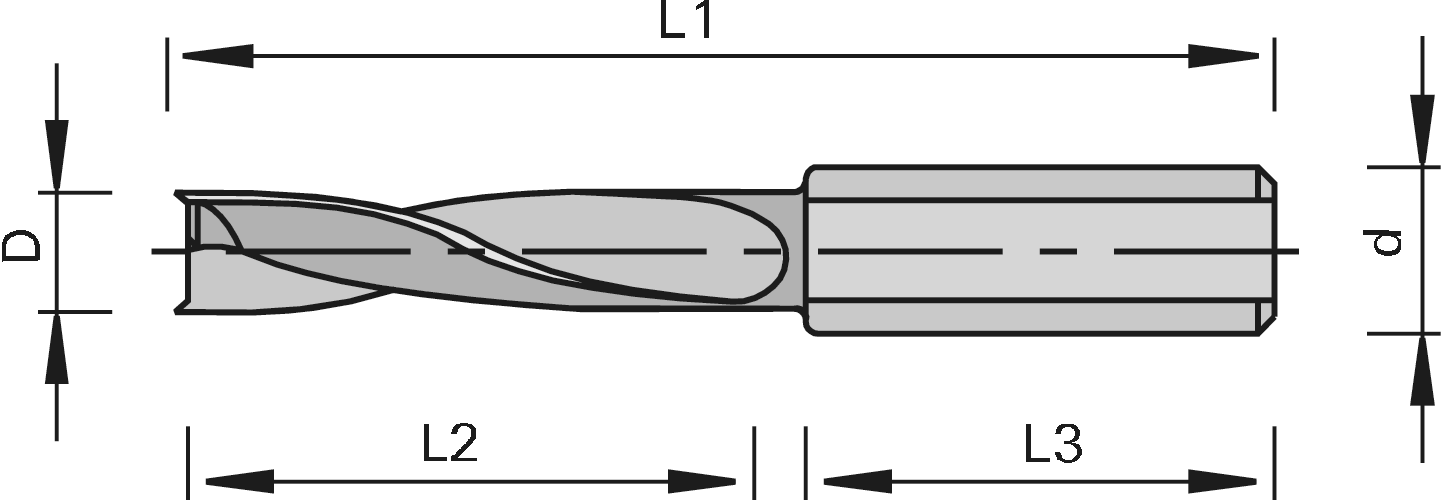

Drawing

  • Solid Tungsten Carbide
  • MAN

Article

Description

Machine / Application

  • best results on CNC and gantry machines but also suitable for ADUs and MDUs
  • ideally suited for AFRP and natural fiber reinforced plastics, honeycomb and sandwich materials or block materials

Design

  • patented tip geometry which differs from the conventional "W"-shaped Kevlar drill bits due to its very sharp cutting edges and two spurs

Advantages

  • The tip geometry only generates minimal cutting forces
  • Due to this, a very good quality at the entry and exit area of the drill can be achieved

Notes

  • Other dimensions and configurations on request

Table- and picture caption ...

Ø D
[mm] 		L2
[mm] 		Ø d
[mm] 		L1
[mm] 		Z L/R Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

2 17 6,0 50 2 R 187001
|
2.1 17 6,0 50 2 R 187002
|
2.2 17 6,0 50 2 R 187003
|
2.3 17 6,0 50 2 R 187004
|
2.4 17 6,0 50 2 R 187005
|
2.5 20 6,0 50 2 R 187006
|
2.6 20 6,0 50 2 R 187007
|
2.7 20 6,0 50 2 R 187008
|
2.8 20 6,0 50 2 R 187009
|
2.9 20 6,0 50 2 R 187010
|
3 20 6,0 50 2 R 186584
|
3.1 20 6,0 50 2 R 186585
|
3.2 20 6,0 50 2 R 186586
|
3.3 20 6,0 50 2 R 186587
|
3.4 20 6,0 50 2 R 186588
|
3.5 20 6,0 50 2 R 186589
|
3.6 20 6,0 50 2 R 186590
|
3.7 20 6,0 50 2 R 186591
|
3.8 20 6,0 50 2 R 186592
|
3.9 20 6,0 50 2 R 186593
|
4 26 6,0 57.5 2 R 186594
|
4.1 26 6,0 57.5 2 R 186595
|
4.2 26 6,0 57.5 2 R 186596
|
4.3 26 6,0 57.5 2 R 186597
|
4.4 26 6,0 57.5 2 R 186598
|
4.5 26 6,0 57.5 2 R 186599
|
4.6 26 6,0 57.5 2 R 186600
|
4.7 26 6,0 57.5 2 R 186601
|
4.8 26 6,0 57.5 2 R 186602
|
4.9 26 6,0 57.5 2 R 186603
|
5 31 6,0 70 2 R 186604
|
5.1 31 6,0 70 2 R 186605
|
5.2 31 6,0 70 2 R 186606
|
5.3 31 6,0 70 2 R 186607
|
5.4 31 6,0 70 2 R 186608
|
5.5 31 6,0 70 2 R 186609
|
5.6 31 6,0 70 2 R 186610
|
5.7 31 6,0 70 2 R 186611
|
5.8 31 6,0 70 2 R 186612
|
5.9 31 6,0 70 2 R 186613
|
6 31 6,0 70 2 R 186614
|
6.1 31 8,0 70 2 R 186615
|
6.2 31 8,0 70 2 R 186616
|
6.3 31 8,0 70 2 R 186617
|
6.4 31 8,0 70 2 R 186618
|
6.5 31 8,0 70 2 R 186619
|
6.6 31 8,0 70 2 R 186620
|
6.7 31 8,0 70 2 R 186621
|
6.8 31 8,0 70 2 R 186622
|
6.9 31 8,0 70 2 R 186623
|
7 31 8,0 70 2 R 186624
|
7.1 31 8,0 70 2 R 186625
|
7.2 31 8,0 70 2 R 186626
|
7.3 31 8,0 70 2 R 186627
|
7.4 31 8,0 70 2 R 186628
|
7.5 31 8,0 70 2 R 186629
|
7.6 31 8,0 70 2 R 186630
|
7.7 31 8,0 70 2 R 186631
|
7.8 31 8,0 70 2 R 186632
|
7.9 31 8,0 70 2 R 186633
|
8 31 8,0 70 2 R 186634
|
8.1 31 10 70 2 R 186635
|
8.2 31 10 70 2 R 186636
|
8.3 31 10 70 2 R 186637
|
8.4 31 10 70 2 R 186638
|
8.5 31 10 70 2 R 186639
|
8.6 31 10 70 2 R 186640
|
8.7 31 10 70 2 R 186641
|
8.8 31 10 70 2 R 186642
|
8.9 31 10 70 2 R 186643
|
9 31 10 70 2 R 186644
|
9.1 31 10 70 2 R 186645
|
9.2 31 10 70 2 R 186646
|
9.3 31 10 70 2 R 186647
|
9.4 31 10 70 2 R 186648
|
9.5 31 10 70 2 R 186649
|
9.6 31 10 70 2 R 186650
|
9.7 31 10 70 2 R 186651
|
9.8 31 10 70 2 R 186652
|
9.9 31 10 70 2 R 186653
|
10 31 10 70 2 R 186654
|
11 36 12 80 2 R 186655
|
12 36 12 80 2 R 186656
|
13 41 14 90 2 R 186657
|
14 41 14 90 2 R 186658
|
15 41 16 90 2 R 186659
|
16 41 16 90 2 R 186660
|
17 46 18 100 2 R 187011
|
18 46 18 100 2 R 187012
|
19 46 20 100 2 R 187013
|
20 46 20 100 2 R 187014
|
21 51 25 110 2 R 187015
|
22 51 25 110 2 R 187016
|
23 51 25 110 2 R 187017
|
24 51 25 110 2 R 187018
|
25 51 25 110 2 R 187019
|
