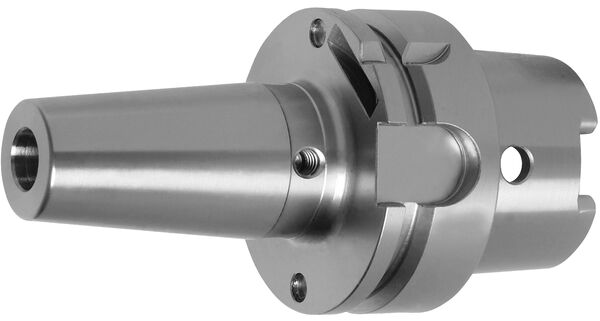

Heat-shrinking chuck HSK 50A and HSK 63A

Increased process safety, long edge lives and high machining quality thanks to high concentricity and repeating accuracy combined with highest rigidity

	Ø d1 [mm]	L2 [mm]	Ø d [mm]	Ø D [mm]	a [mm]	Weight [kg]	Ident-No.	Comp./ Inqu.
Dimensions entered are not listed? Please contact our application consulting . available from stock available on short notice Delivery time on request
	6	36	HSK 50A	27	80	0.58	187201	\|
	8	36	HSK 50A	27	80	0.57	187202	\|
	10	41	HSK 50A	32	85	0.65	187203	\|
	12	46	HSK 50A	32	90	0.66	187204	\|
	6	36	HSK 63A	27	80	0.84	187205	\|
	8	36	HSK 63,A	27	80	0.93	187206	\|
	10	41	HSK 63A	32	85	0.91	187207	\|
	12	46	HSK 63A	32	90	0.92	187208	\|
