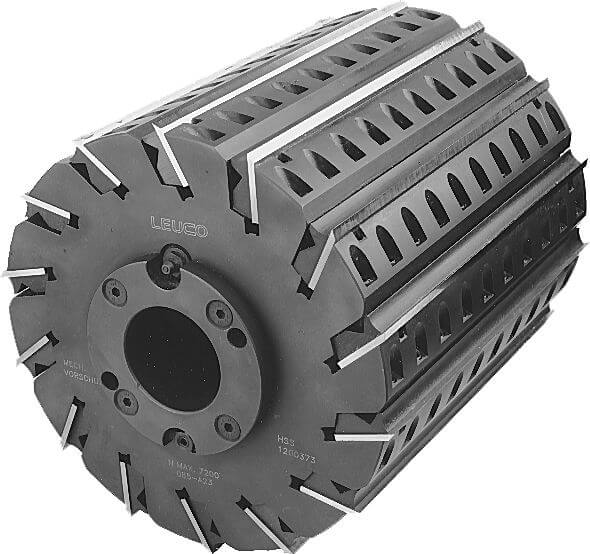

Hydro-Rotaplan Cutterheads HS

Product

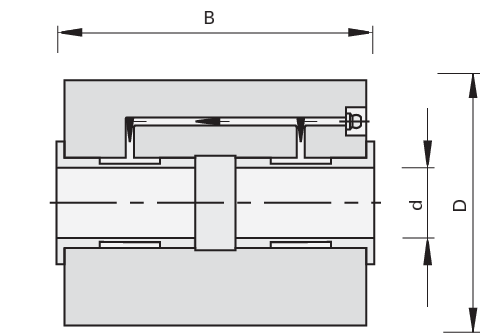

Drawing

  • High Speed Steel [HS]
  • MEC

Article

Description

Machine / Application

  • hydro profile molders
  • for planing of solid woods

Design

  • n max = 6,000 min-1

Advantages

  • high concentric accuracy and precise tool balancing thanks to Hydro clamping (system Weinig) for precise concentricity tolerance
  • high feed rates and optimum cutting quality

Notes

  • HS-tipped knives 30 x 3 mm
  • alternative cutting material: ST for soft and hard woods; HW for hard and exotic woods

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		Ø d
[mm] 		Z Hook angle
[°] 		nmax
[min-1] 		Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

203 150 50 6 27 6,000 178133
|
203 230 50 6 27 6,000 178134
|
203 150 50 8 27 6,000 178136
|
203 230 50 8 27 6,000 178137
|
203 310 50 8 27 6,000 178139
|
203 150 50 10 23 6,000 178141
|
203 230 50 10 23 6,000 178142
|
203 100 50 12 23 6,000 178145
|
203 150 50 12 23 6,000 178146
|
203 230 50 12 23 6,000 178147
|
Show 1 to 10 of 12 entries
