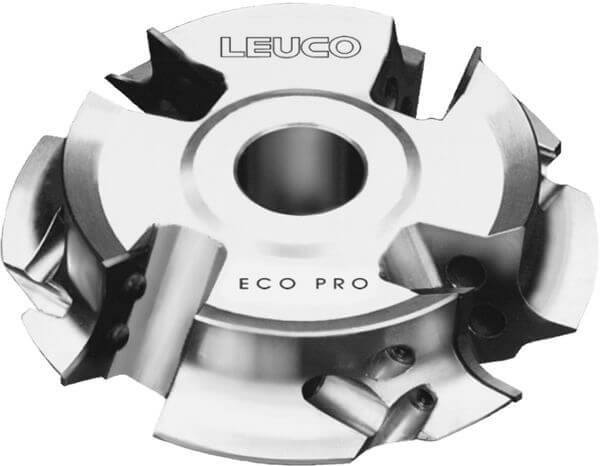

EcoPro Cutterheads HW (cranked) - MAN

cutterhead body and knives will be profiled according to customer specifications

Showentries

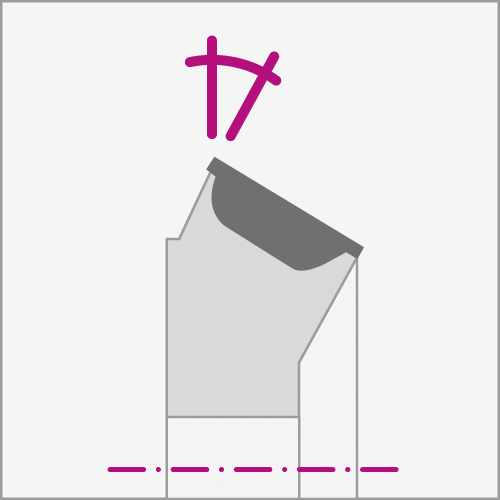

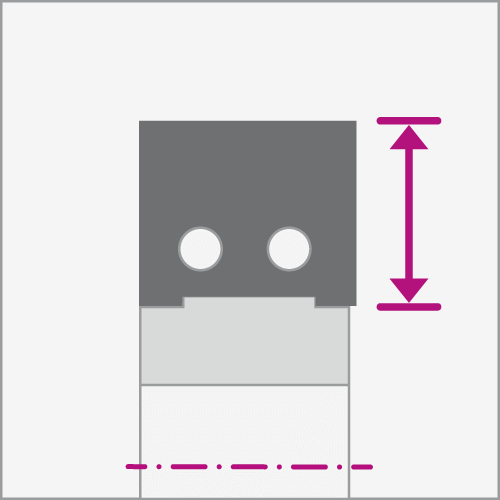

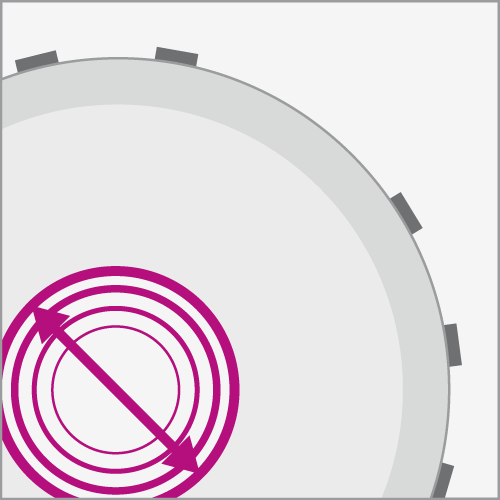

	Ø D [mm]	B [mm]	H [mm]	b [mm]	Ø d [mm]	Ø dmax [mm]	Z	Crank∡ [°]	Drawing [Foil]	nmin-nmax [min-1]	Ident-No.	Comp./ Inqu.
Dimensions entered are not listed? Please contact our application consulting . available from stock available on short notice Delivery time on request
	150	40	30	49	30	30	3	30	EP 390	6300-7460	179350	\|
	150	40	30	49	30	30	3	30	EP 390	6300-7460	179059	\|
	180	40	30	50	30	50	4	30	EP 390	5000-6580	179355	\|
	180	40	30	50	30	50	4	30	EP 390	5000-6580	179061	\|
	180	50	33	57	30	50	4	30	EP 392	5000-5700	179358	\|
	180	50	33	57	30	50	4	30	EP 392	5000-5700	179062	\|
	165	40	30	46	30	30	3	45	EP 396	5300-6920	179360	\|
	165	40	30	46	30	30	3	45	EP 396	5300-6920	179063	\|
	165	50	33	53	30	30	3	45	EP 398	4600-6040	179362	\|
	165	50	33	53	30	30	3	45	EP 398	4600-6040	179064	\|

Show 1 to 10 of 14 entries
