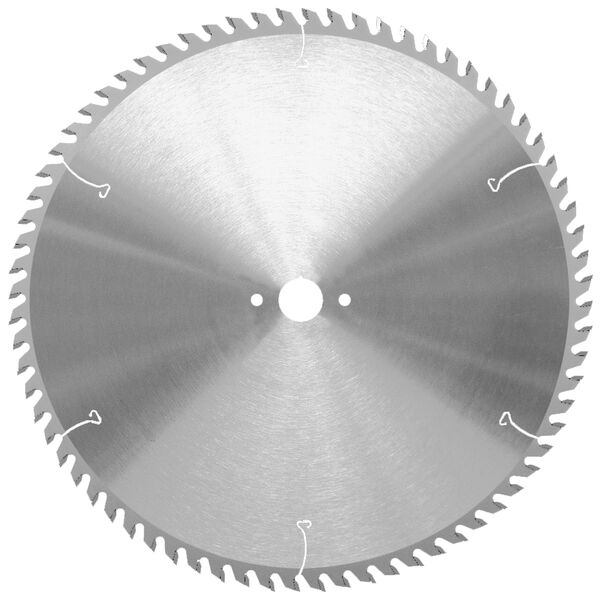

Sizing Saw Blades HW - for Segment Hoggers "WS"
Product

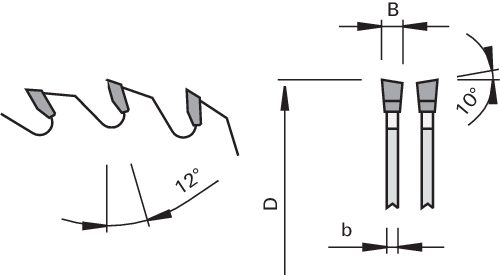

Drawing
-
-
- Tungsten Carbide [HW]
Article
Description
Machine / Application
Design
- tooth configuration: ATB "WS"
- cutting material: HW HL Board 06
Advantages
Notes
- circular saw blades for large hoggers
- when ordering, please indicate hogger type: circular cut or stepped cut
- prices valid for saw blades only; additional pinholes, countersinks and reboring to fit onto hoggers at a surcharge
- other dimensions and versions see chapter "Circular Saw Blades"
- Combi2 = 2/7/42 + 2/9/46 + 2/10/60
|
Ø D
[mm] |
B
[mm] |
b
[mm] |
Ø d
[mm] |
Z | NL |
Hook angle
[°] |
Corner∡
[°] |
LEUCODUR | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||||||
| 400 | 4,4 | 3.2 | 30 | 54 | 2/8/60 | 12 | 10 | HL Board 06 | 80496725 | ||
| 400 | 4,4 | 3.2 | 30 | 72 | 2/8/60 | 12 | 10 | HL Board 06 | 80496726 | ||
| 400 | 4,4 | 3.2 | 30 | 120 | 2/8/60 | 12 | 10 | HL Board 06 | 80496727 | ||
| 400 | 4,4 | 3.2 | 30 | 144 | 2/8/60 | 12 | 10 | HL Board 06 | 80496728 | ||
