Selection via tool type

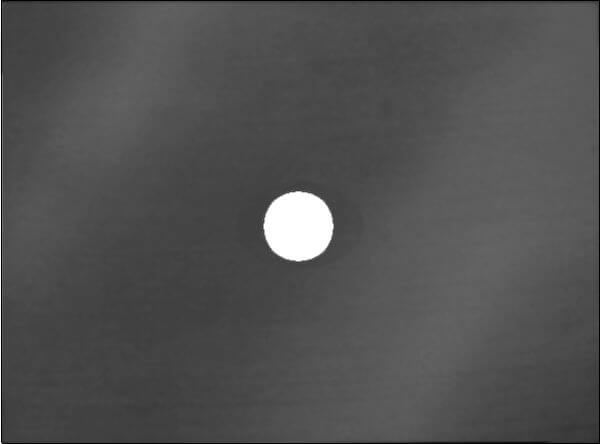

Blanks HW - central bore

Product

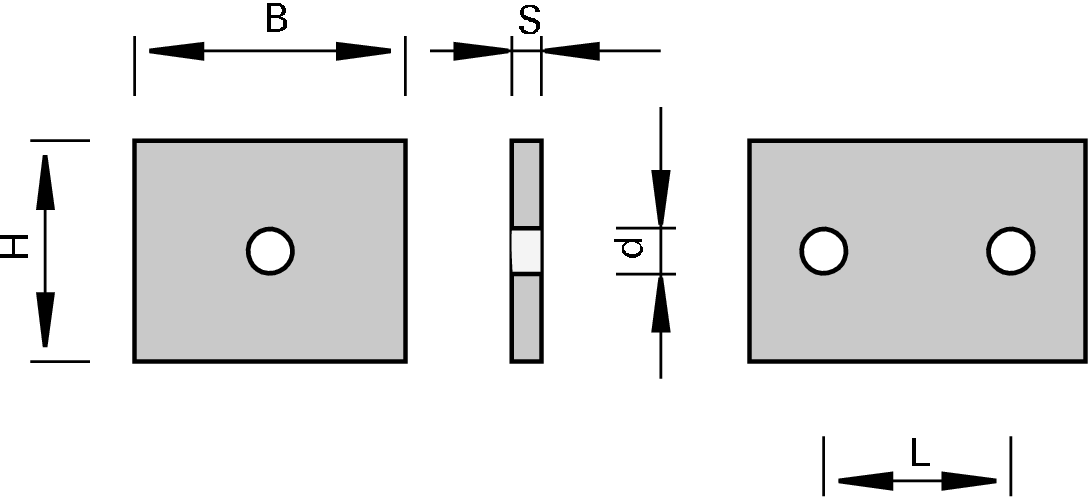

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • for use in profile cutterheads

Design

  • width, height, and thickness precision ground
  • cutting material: HW
  • HL Board 05 for wood-based panels, plastics and hard woods

Advantages

Notes

Table- and picture caption ...

B
[mm] 		H
[mm] 		S
[mm] 		Ø d
[mm] 		L
[mm] 		LEUCODUR PU
[pc.] 		Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

24 22 2 4,2 HL Board 05 10 168821
|
32 24 2 4,2 HL Board 05 10 168823
|
36 28 2 4,2 HL Board 05 10 168824
|
40 26 2 4,2 HL Board 05 10 168825
|
42 32 2 4,2 24 HL Board 05 10 168826
|
52 34 2 4,2 24 HL Board 05 10 168828
|
