SuperProfiler Blanks HW - B=50 mm
Product

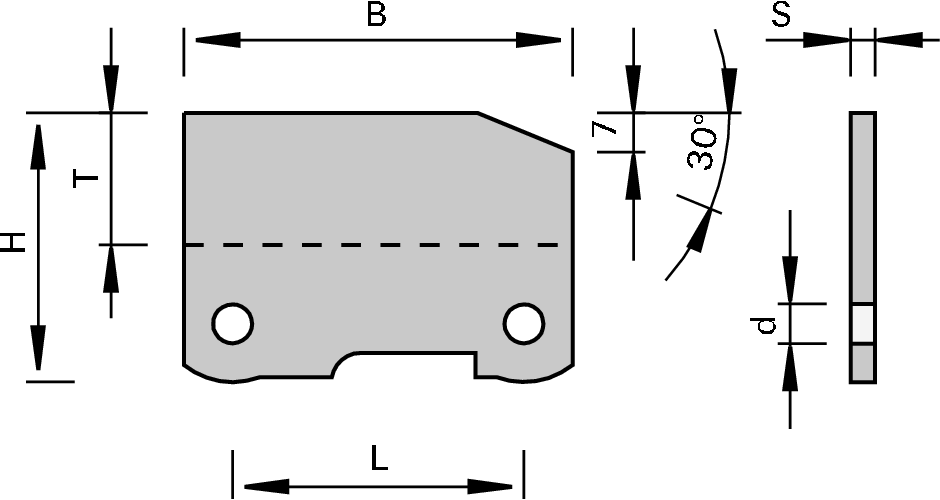

Drawing
-
- Tungsten Carbide [HW]
Article
Description
Machine / Application
- for use in LEUCO SuperProfiler cutterheads
Design
- optionally topline (polished face)
- cutting material: HW
- HL Board 06 for wood-based panels, plastics and hard woods
Advantages
- topline design: highest cutting quality and significantly improved cutting edges
Notes
- T = maximum profile depth
|
Chamfer∡
[°] |
B
[mm] |
H
[mm] |
S
[mm] |
Ø d
[mm] |
L
[mm] |
Tmax
[mm] |
LEUCODUR |
PU
[pc.] |
L/R | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||||
| 30 | 49,4 | 44.5 | 2 | 5,0 | 35 | 22 | HL Board 06 | 10 | N | 180218 | ||
| 30 | 49,4 | 44.5 | 2 | 5,0 | 35 | 22 | HL Board 06 topline | 10 | L | 180219 | ||
| 30 | 49,4 | 44.5 | 2 | 5,0 | 35 | 22 | HL Board 06 topline | 10 | R | 180220 | ||
