182421 - UltraProfiler Blanks HW
Product

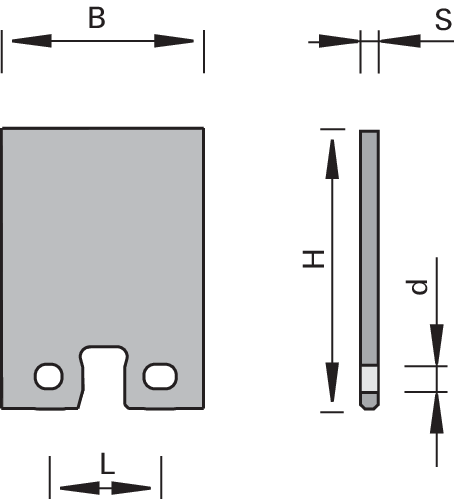

Drawing
-
- Tungsten Carbide [HW]
Technical data
Description
Machine / Application
- for use in LEUCO UltraProfiler cutterheads
Design
- two-point seating and automatic positioning (axial and radial)
- optionally topline (polished face)
- cutting material: HW
- HL Board 06 for wood-based panels, plastics and hard woods
Advantages
- precise and automatic positioning of the blanks for profiling and when changing the knives
- no stop screw necessary
- topline design: highest cutting quality and significantly improved cutting edges
Notes
- profile knife can be profiled per customer specifications
| Feature | Value | |
|---|---|---|
| Dimension | 50x40,4x2 [mm] | |
| B = Width | 50 [mm] | |
| H = Height | 40.4 [mm] | |
| S = Thickness | 2 [mm] | |
| Ø d = Bore diameter | 3,5 [mm] | |
| L = Bore distance | 32,8 [mm] | |
| Type = Type | C | |
| LEUCODUR = Cutting material | HL Board 06 | |
| PU = Packing unit | 10 [pc.] | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
