Back-serrated HW blanks for profiling

HW-tipped for hard and exotic woods
tipping height 14 mm for blank height 50 mm, tipping height 20 mm for blank height 60 mm

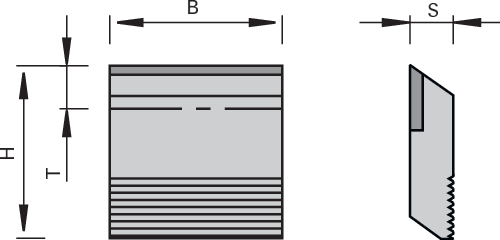

T = profile depth
from safety reasons please always mount knives and support plates with equal weight (packing unit VE) opposite each other

	B [mm]	H [mm]	S [mm]	Tmax [mm]	LEUCODUR	PU [pc.]	Ident-No.	Comp./ Inqu.
Dimensions entered are not listed? Please contact our application consulting . available from stock available on short notice Delivery time on request
	40	50	10	13	HW	2	165357	\|
	40	60	10	18	HW	2	165365	\|
	60	50	10	13	HW	2	165358	\|
	60	60	10	18	HW	2	165366	\|
	80	50	10	13	HW	2	165359	\|
	80	60	10	18	HW	2	165367	\|
	100	50	10	13	HW	2	165360	\|
	100	60	10	18	HW	2	165368	\|
	130	50	10	13	HW	2	165361	\|
	130	60	10	18	HW	2	165369	\|
	150	50	10	13	HW	2	165362	\|
	150	60	10	18	HW	2	165370	\|
	180	50	10	13	HW	2	165363	\|
	180	60	10	18	HW	2	165371	\|
	230	50	10	13	HW	2	165364	\|
	230	60	10	18	HW	2	165372	\|
