Selection via tool type

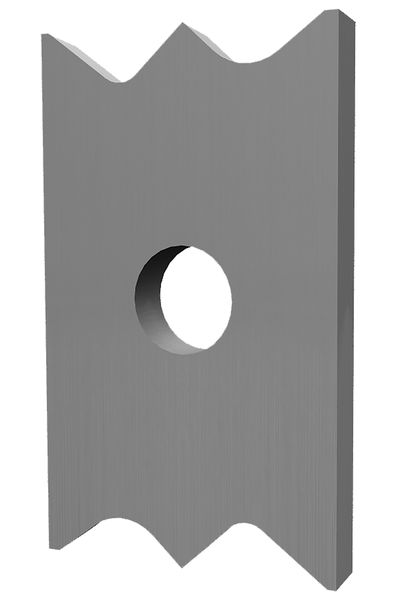

Multi Scraper Knives HW - EBM

Product

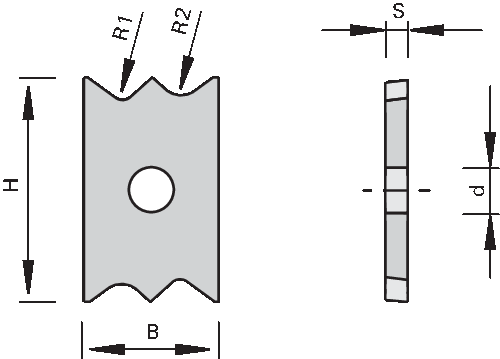

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • EBM edge banding machine with dual-profile technology
  • for use in scraper holders
  • for scraping of standard edge bandings such as PP / PVC / ABS

Design

  • 2 different radius combinations in one scraper
  • Cutting material: HW
  • HL Board 06 for wood-based materials, plastic and hard wood

Advantages

  • Combination of up to 2 different profiles in one tool

Notes

Table- and picture caption ...

R1
[mm] 		R2
[mm] 		B
[mm] 		H
[mm] 		S
[mm] 		Ø d
[mm] 		LEUCODUR PU
[pc.] 		Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

1 2 12 20 2 4,0 HL Board 06 2 187133
|
3 2 12 20 2 4,0 HL Board 06 2 187134
|
